RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

<p>Easy to follow installation guide for RM1-5462-000 Transfer Roller, used in <a href="https://secure.partsmart-corp.com/kit-and-fuser-assembly/hp-laserjet-hp… maintenance kit</a>. Q2429A maintenance kit is specifically designed for HP LaserJet 4200 printers.</p>

Compatible models

LaserJet 4200
LaserJet 4300

Detailed Step by Step Instruction

RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

Open the top cover of the printer and remove the toner cartridge.

RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

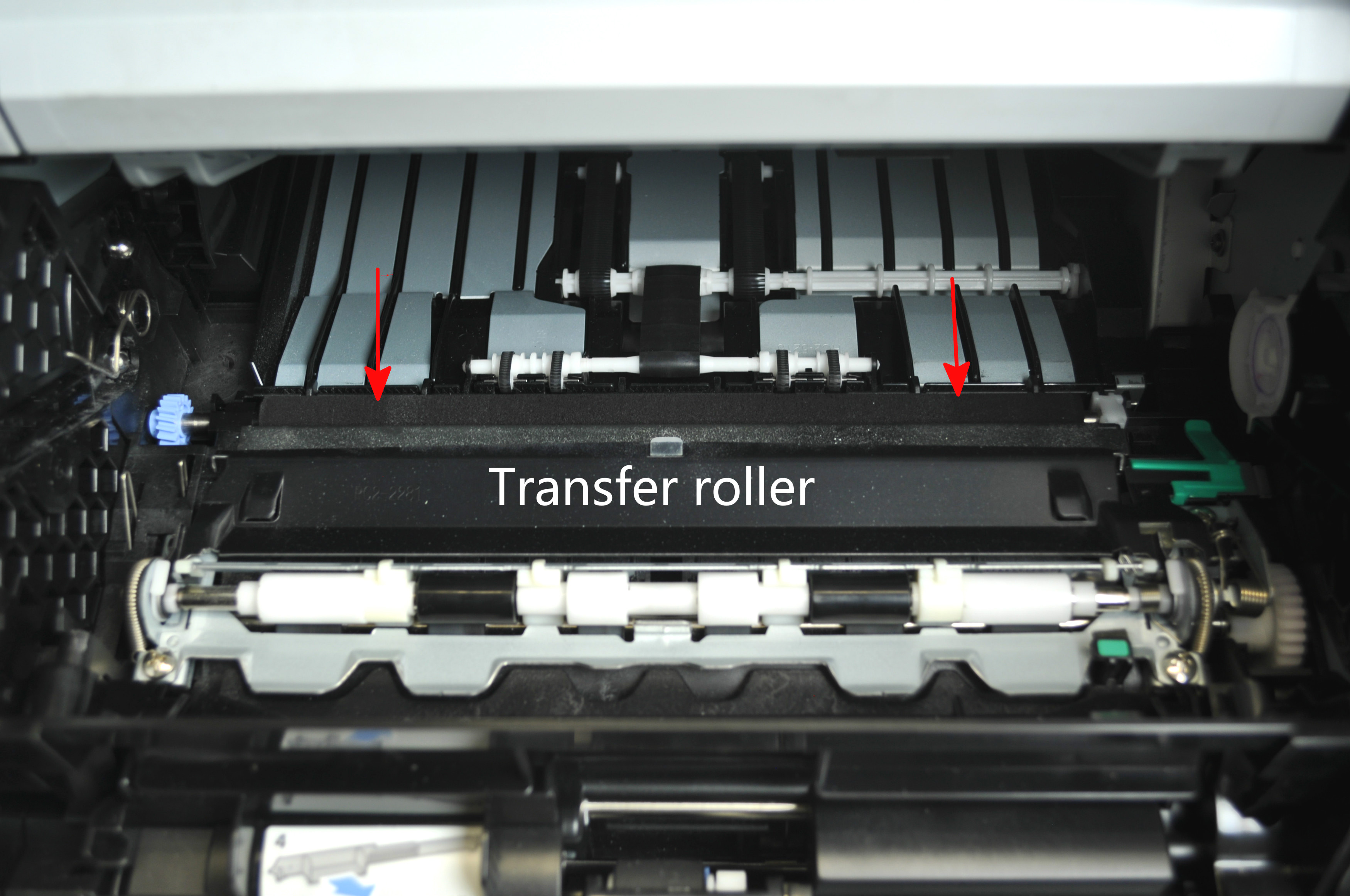

Transfer roller is located under the toner cartridge.

RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

Use our special plastic hook (included in the transfer roller box) to pull the left end of transfer roller up and then slide the transfer roller to the left to remove it.

RM1-0699-000 Transfer Roller Instruction Guide (part of Q2429A maintenance kit)

Insert the right side of the new transfer roller first and then the left side, making sure the black plastic clip at the left side of the roller is oriented with the open end facing down and snaps it into position. Note: Do not touch the surface of the transfer roller during installation.
