<p>Easy to follow installation guide for RM1-0037-000 Feed Separation Roller, used in <a href="https://secure.partsmart-corp.com/kit-and-fuser-assembly/hp-laserjet-hp… maintenance kit</a>. Q5421A maintenance kit is specifically designed for HP LaserJet 4250, 4350 printers.</p>
Compatible models
HP
LaserJet 4200
LaserJet 4250
LaserJet 4300
LaserJet 4345 MFP
LaserJet 4350
LaserJet 5200
LaserJet M5025 MFP
LaserJet M5035 MFP
LaserJet P4014
LaserJet P4015
LaserJet P4515
LaserJet Enterprise M4555 MFP
LaserJet Enterprise M601
LaserJet Enterprise M602
LaserJet Enterprise M603
LaserJet Enterprise M604
LaserJet Enterprise M605
LaserJet Enterprise M606
LaserJet Enterprise M630 MFP
LaserJet Enterprise M712
LaserJet Enterprise M806
LaserJet Enterprise M725 MFP
LaserJet Enterprise M830 MFP
LaserJet Pro M435 MFP
LaserJet Pro M701
LaserJet Pro M706
Color LaserJet 4700
Color LaserJet 4730 MFP
Color LaserJet CM3530 MFP
Color LaserJet CM4730 MFP
Color LaserJet CM6030 MFP
Color LaserJet CM6040 MFP
Color LaserJet CP3525
Color LaserJet CP4005
Color LaserJet Enterprise CP4025
Color LaserJet Enterprise CP4525
Color LaserJet Pro CP5225
Color LaserJet Enterprise CP5525
Color LaserJet CP6015
Color LaserJet Enterprise CM4540 MFP
Color LaserJet Enterprise M551
Color LaserJet Enterprise M575 MFP
Color LaserJet Enterprise M651
Color LaserJet Enterprise M680 MFP
Detailed Step by Step Instruction

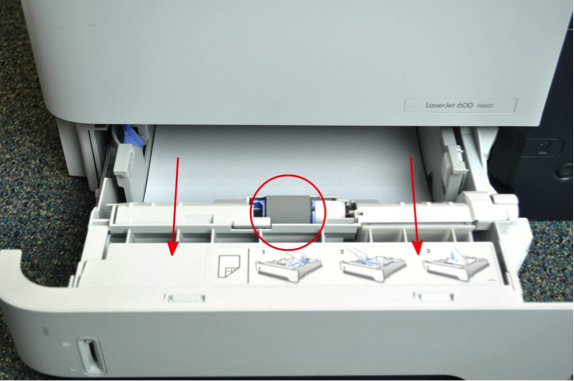

Pull the Tray 2 out from the printer.

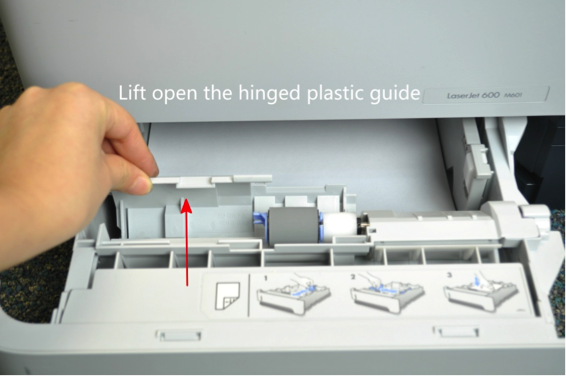

Lift up to open the hinged plastic guide.

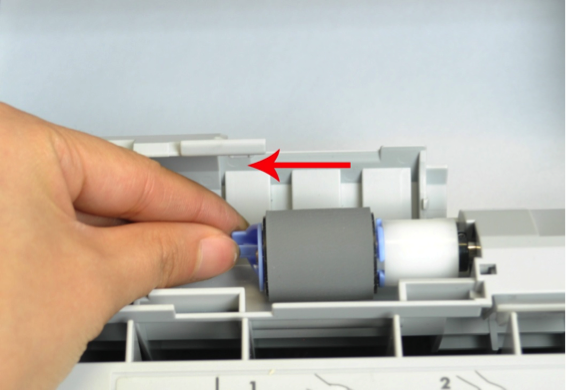

Remove the separation roller by pinching the blue tab on the roller and sliding it off its shaft to the left.

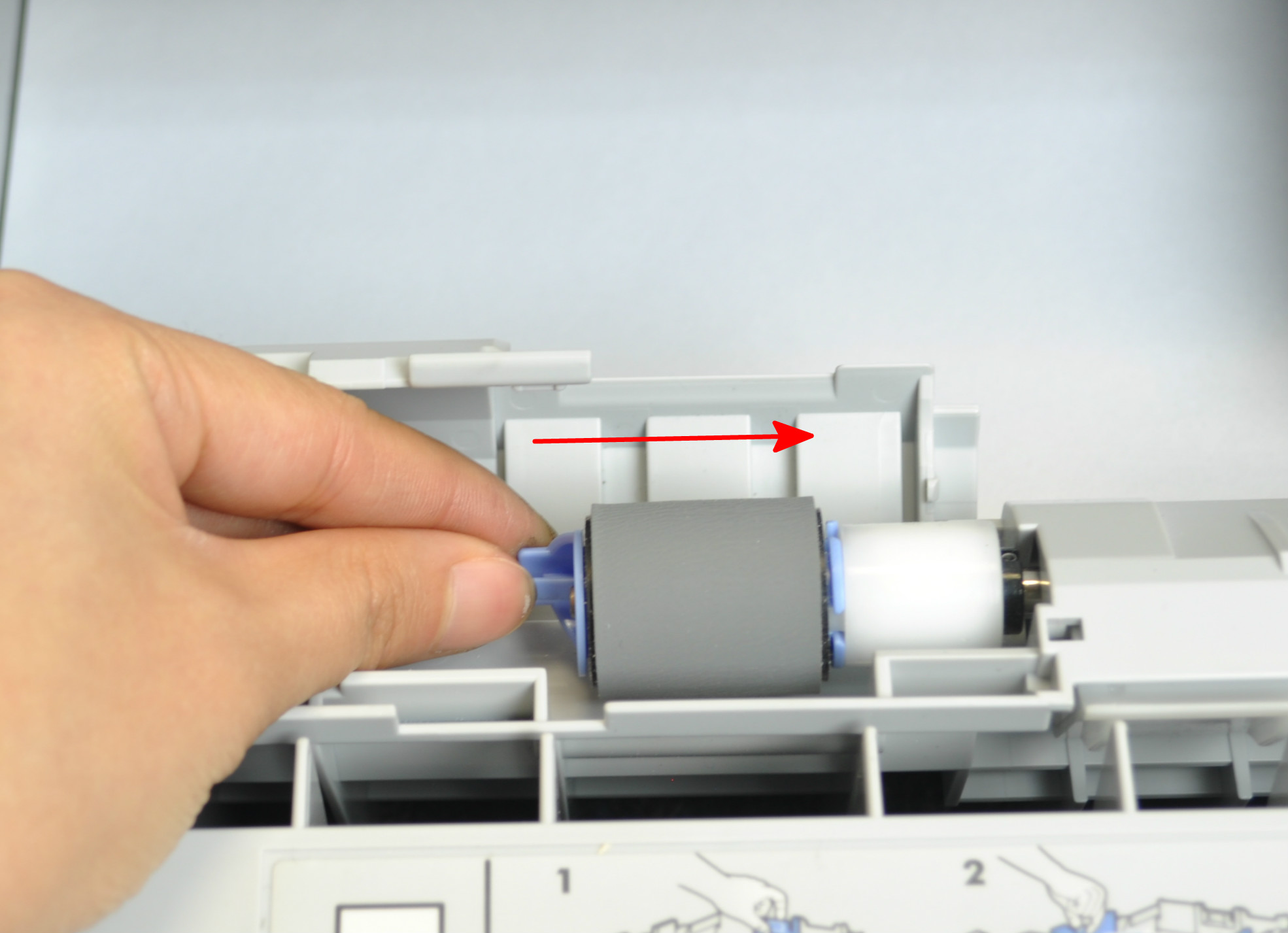

Install the separation roller and make sure the blue tab locks the shaft.
