KIT-4700-RR Installation Instruction

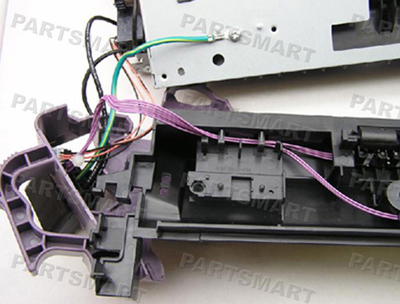

Disassemble the fuser as showing (See following fig).

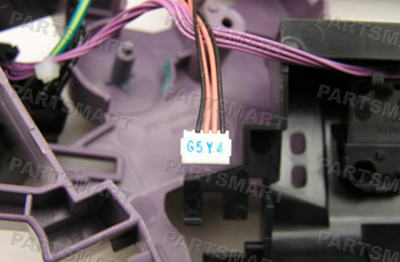

Pull off the connector (See following fig).

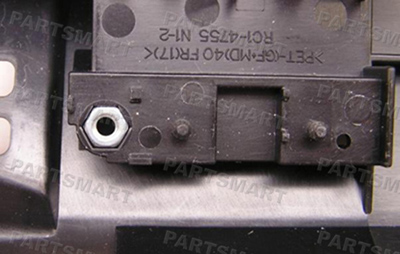

Put the nut in the hole that is in the cover (See following fig).

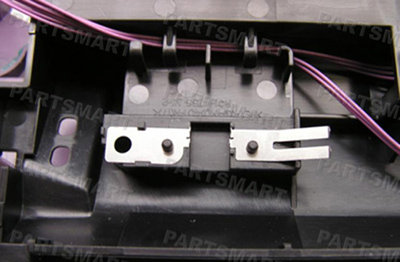

Put the two pieces of resistance holder in position (See following fig).

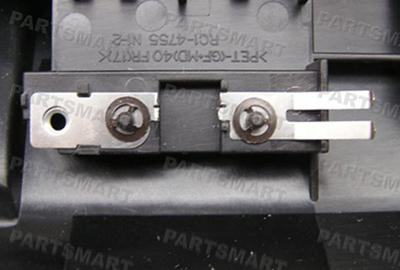

Fixing the two piece of resistance holder using the two clips (See following fig).

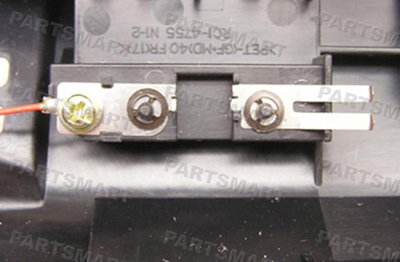

Screw one end of the small wire to one of the resistance holder (See following fig).

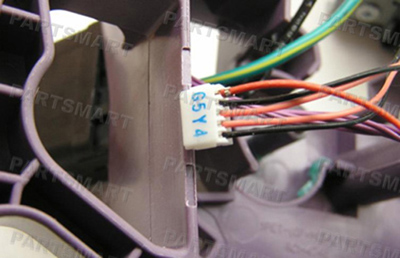

Connect the other end of the small wire to the empty position of the connector (See following fig).

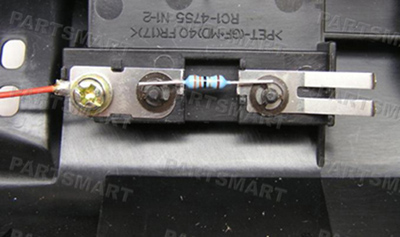

Put one resistance into the two holders (See following fig).

Assemble the fuser.
