RL1-0019-000 Pickup Roller Installation Guide (part of Q2429A Maintenance kit)

Print

Easy to follow installation guide for RL1-0019-000 Pickup Roller, used in Q2429A maintenance kit. Q2429A maintenance kit is specifically designed for HP LaserJet 4200 printers.

  • 1
    Remove the cover from the envelope feeder slot by pulling it straight out.
  • 2

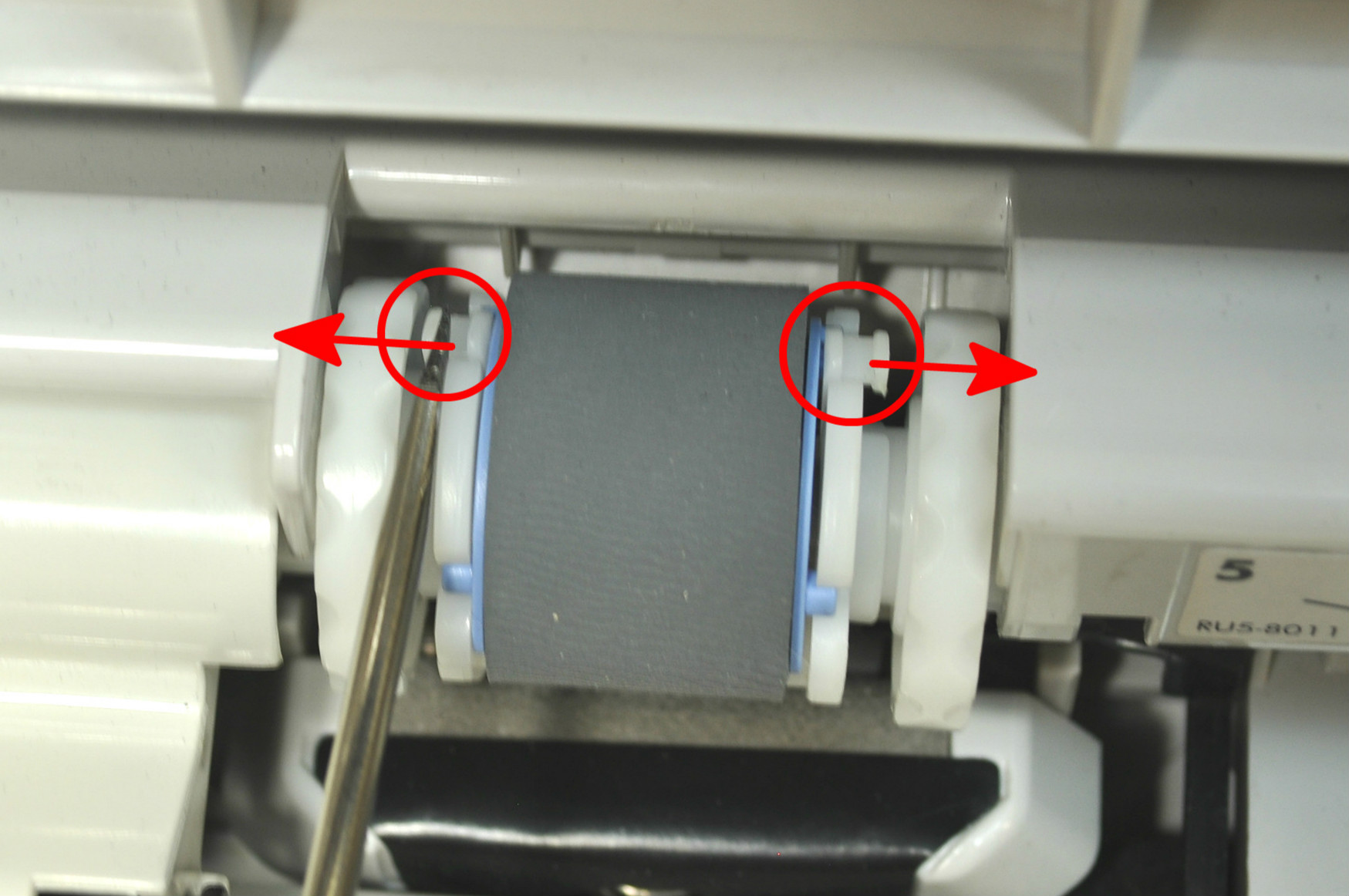

    Use your fingers or two flathead screwdrivers to pry outward on both of the tabs at the same time to free the pickup roller.
  • 3

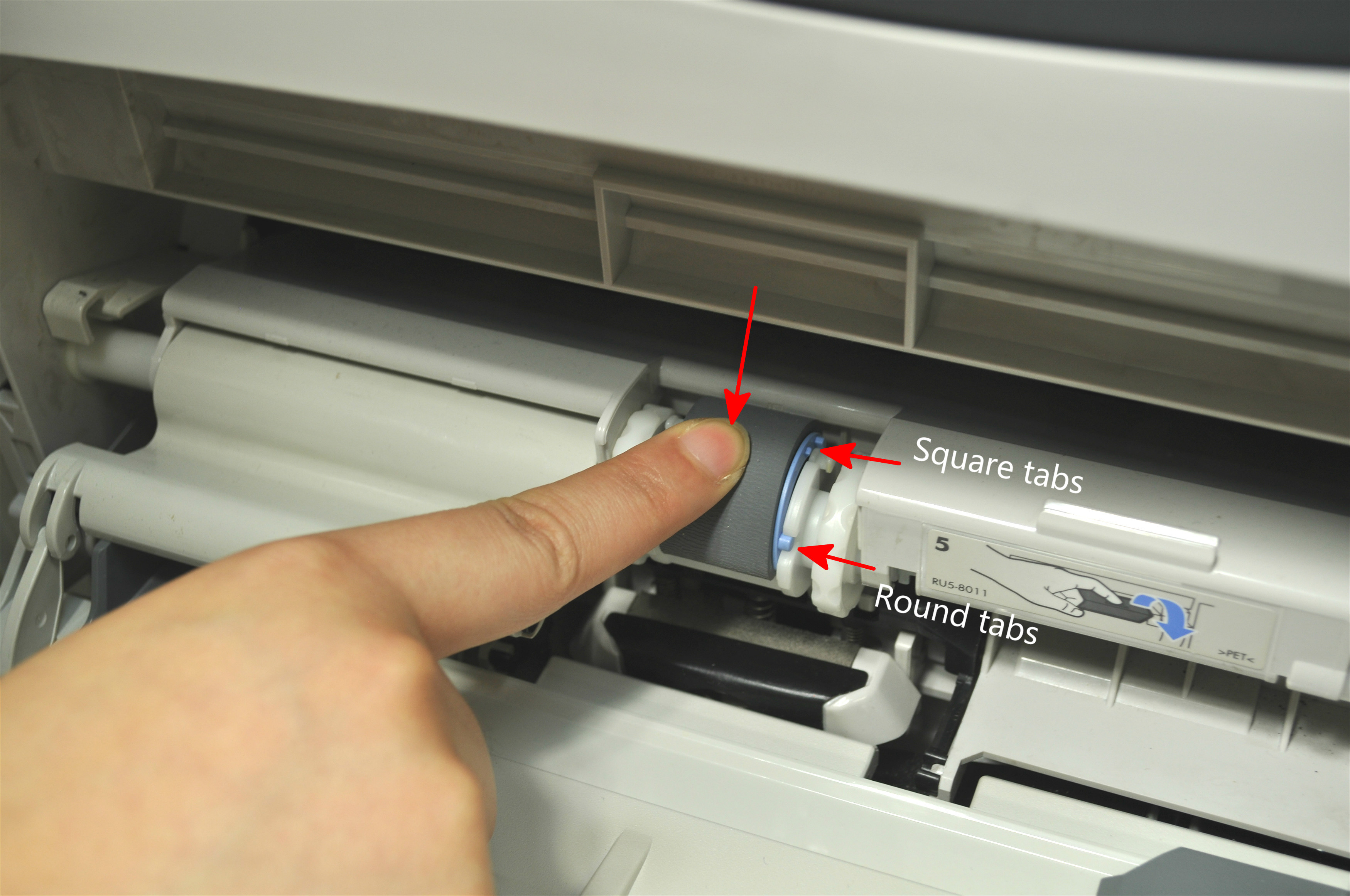

    When you replace new pickup roller, snap the round tabs in first and then the square tabs.
  • 4

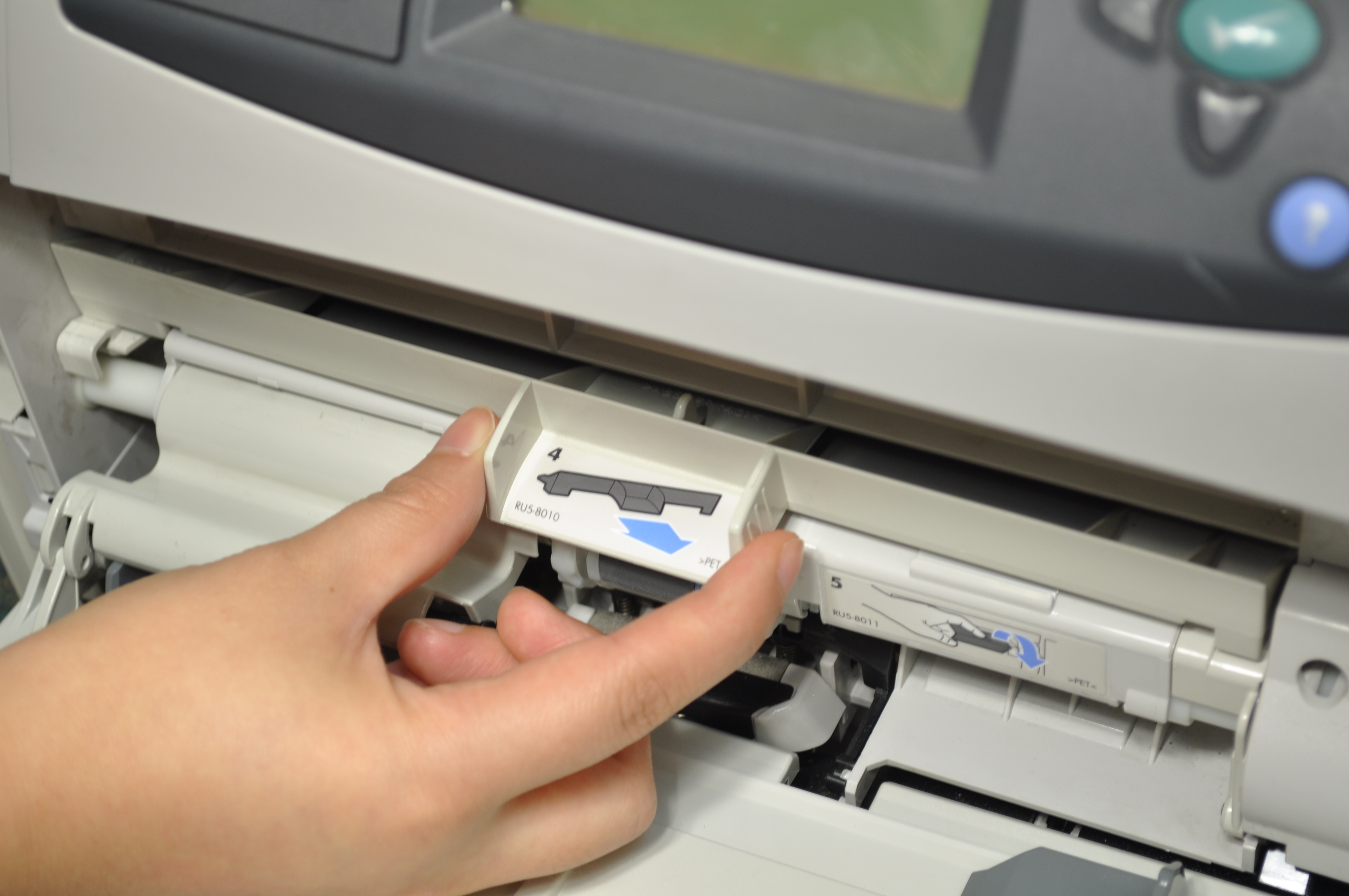

    Insert the cover back.
